Specially designed for the plastics industry
Gravimetric Blender
Dosador Gravimétrico
±0.5% Accuracy 50-4000kg/hr 8 Components
It is suitable for dosing and mixing multiple plastic materials, like virgin, additive, regrind, color masterbatch,etc. With high precision and stable performance, it’s widely used in automotive, plastic package, home appliances, pipes, sheet, medical products, biodegradable plastic, etc.
Operating Principle

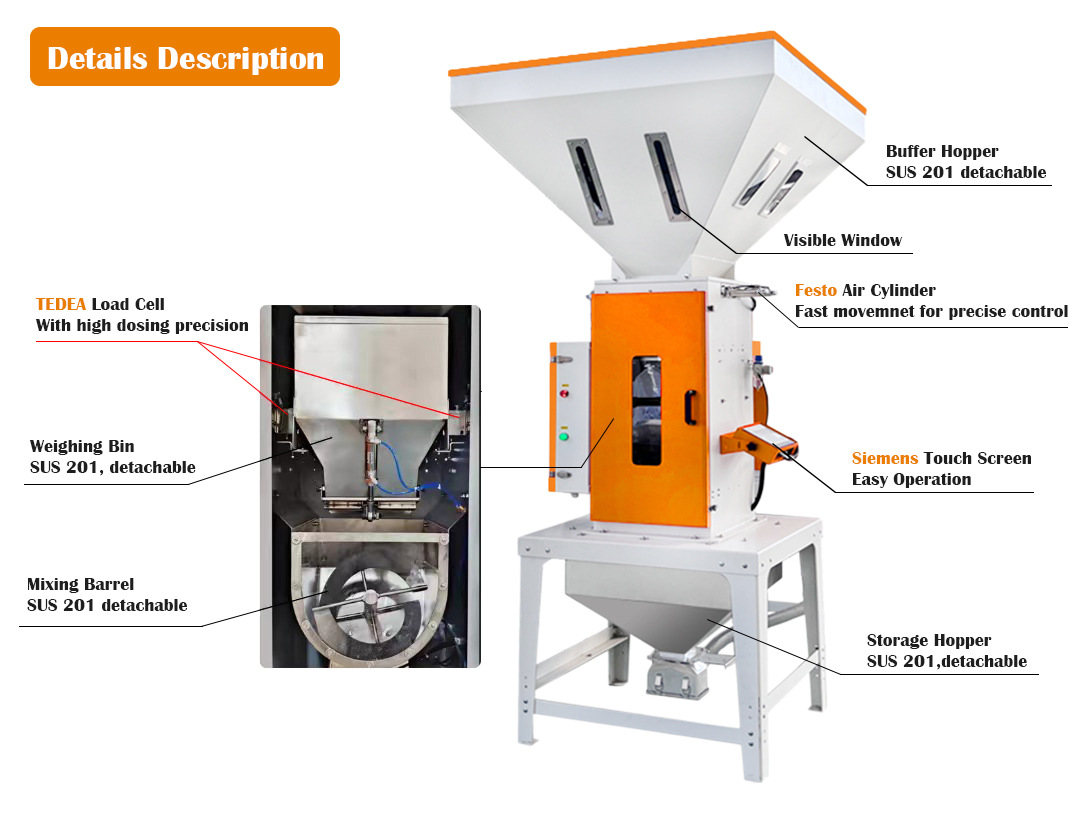

Features
- Modular components allow for easy disassembly and cleaning.
- Advanced control functions such as intelligent algorithms, autonomous optimization, automatic calibration, and anti-vibration ensure maximum dosing accuracy.
- Supports 4-8 material dosing, providing flexibility for various applications.
- User-friendly color touchscreen with multilingual support for easy operation.
- Stores up to 100 recipes, allowing quick retrieval for repeated production needs.
- Enhanced security with multi-level password protection and alarm history tracking.
- Ethernet interface enables real-time data transmission for monitoring material proportions, output, and dosing accuracy, ensuring consistent product quality.
- Sound and flash alarms provide immediate notifications for quick maintenance.

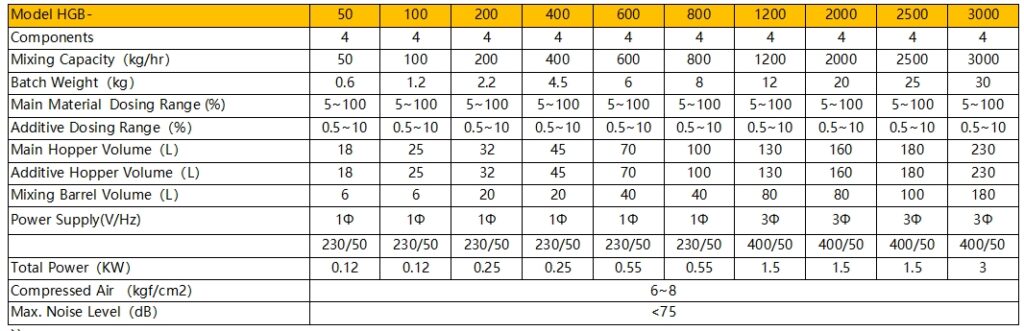

Technical Specifications
Unique Designs
Solve Your Unique Blending Challenges

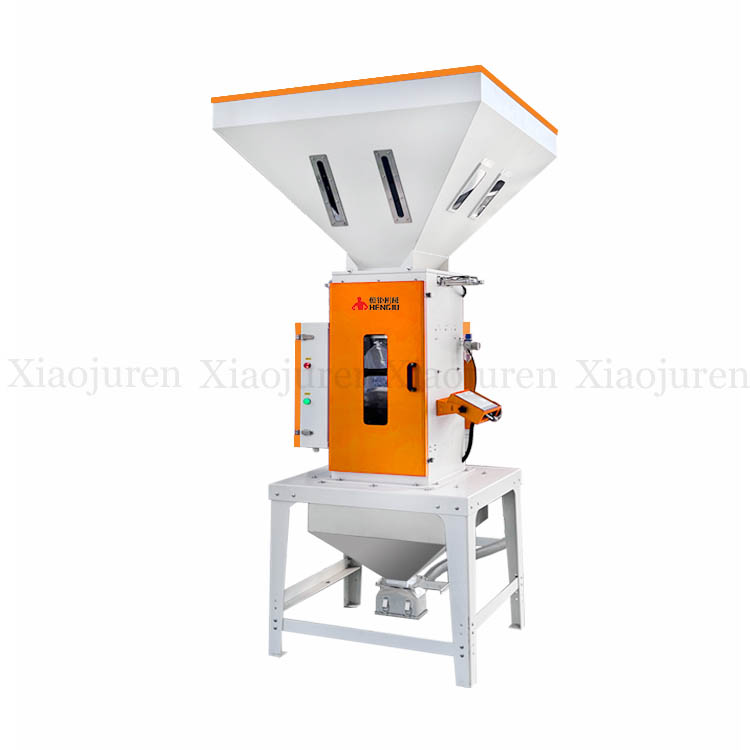

Standard gravimetric blender
This is a standard model that meets most plastic production requirements.

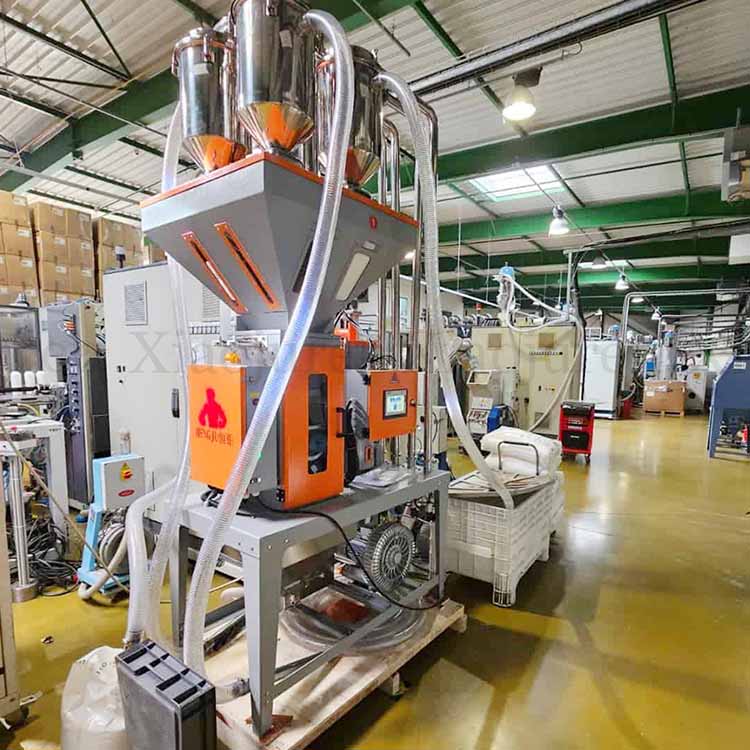

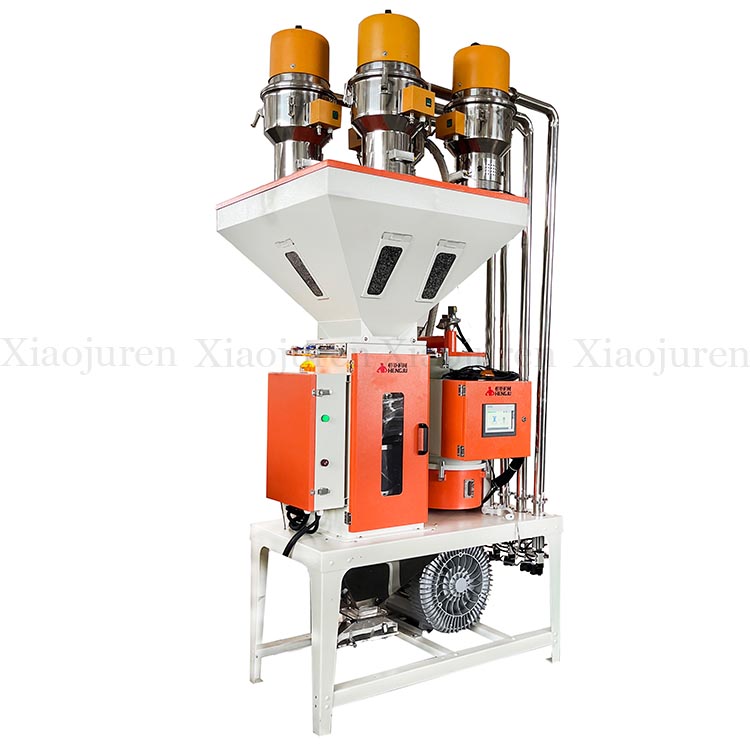

Gravimetric Blender With Loader Unit
Combined the gravimetric blender and vacuum blower into one unit, save space and simplify the operation

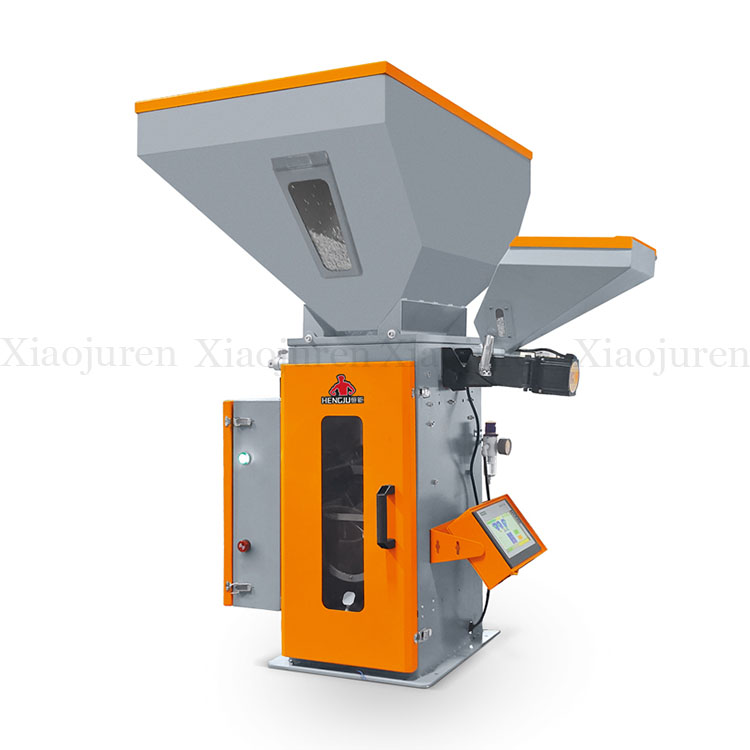

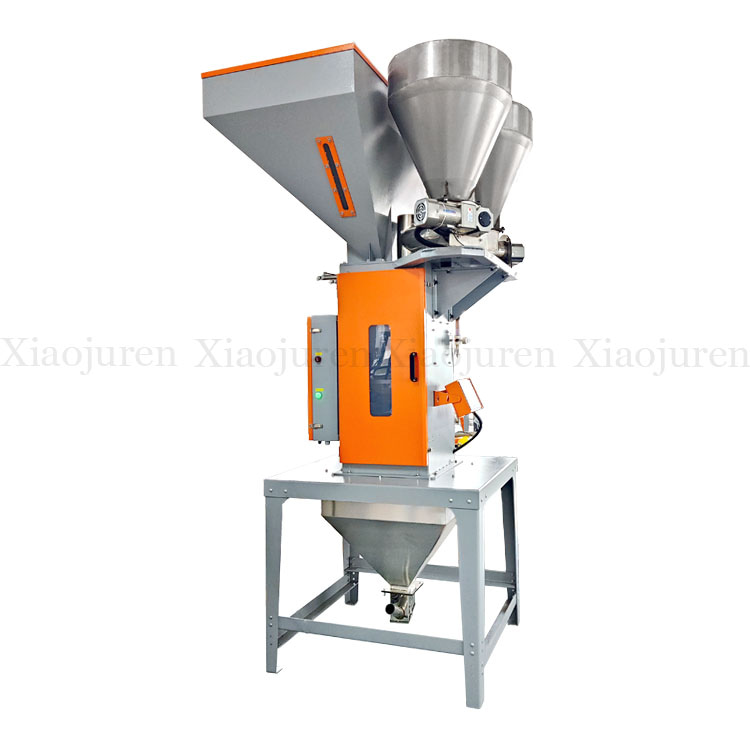

Gravimetric blender With Screw Feeder
It is specially designed for PP, PS, and PET sheet extrusion. With screw feeding, it effectively prevents crushed materials from bridging and getting stuck.
Gravimetric blender With Screw Feeder
For low color masterbatch or additive ratios, this model uses screw feeding to ensure high-precision dosing.
Why choose us?
±0.5% Precision Control
Automatically weighs each ingredient for perfect dosing accuracy.

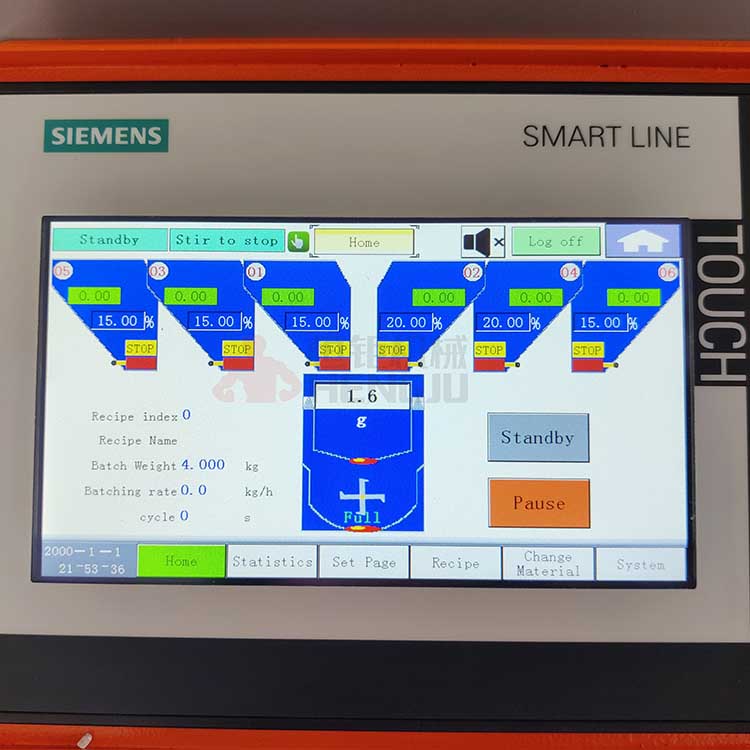

Smart Touch screen Interface
Easy to operate and manage multiple formulas with one click.
Wide Compatibility
Suitable for injection molding, extrusion, blow molding, and more.
Cost Saving
Reduce raw material waste by up to 10%, cut defect rates significantly.
project

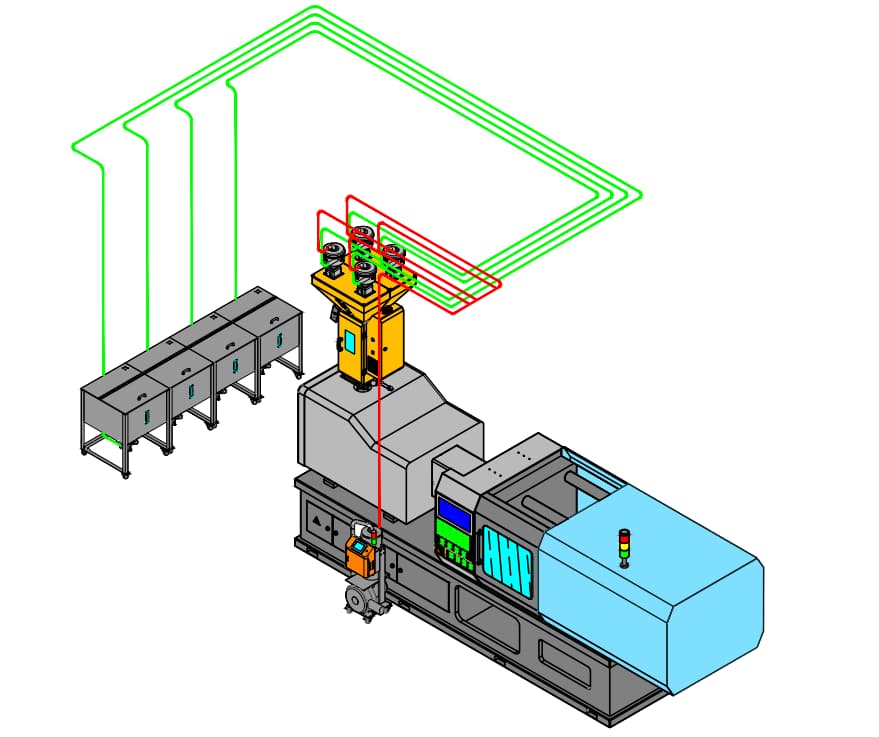

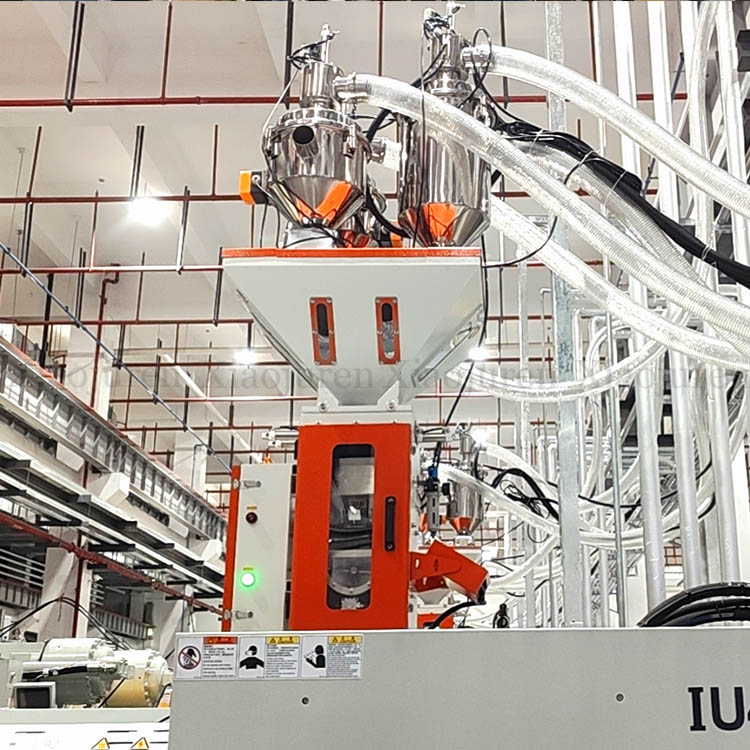

Injection molding
project

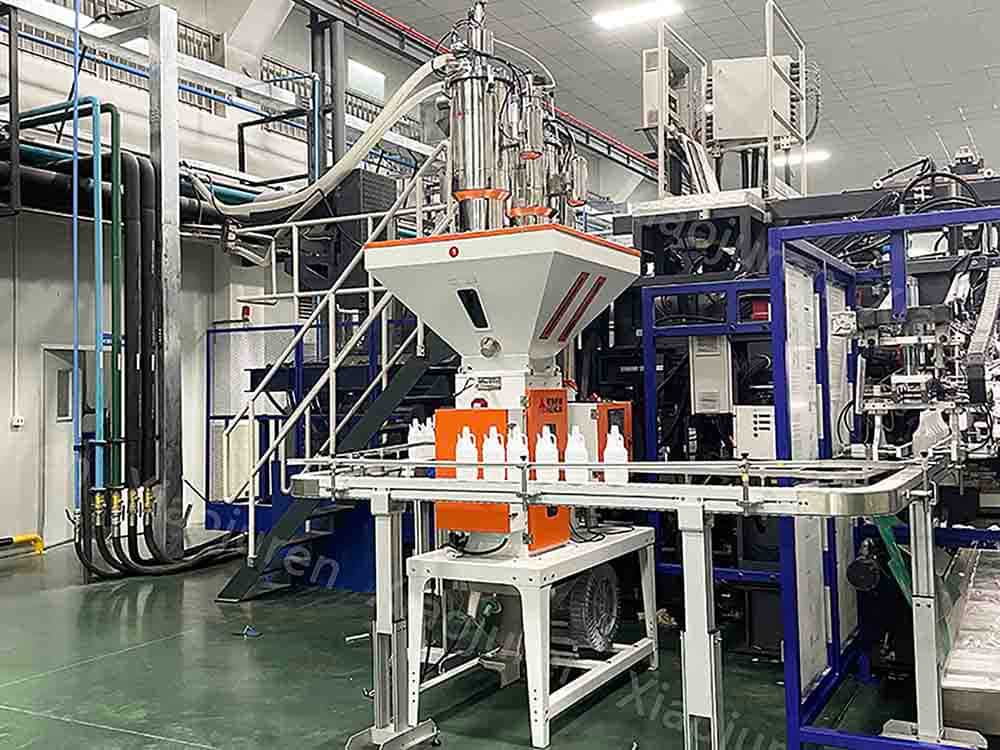

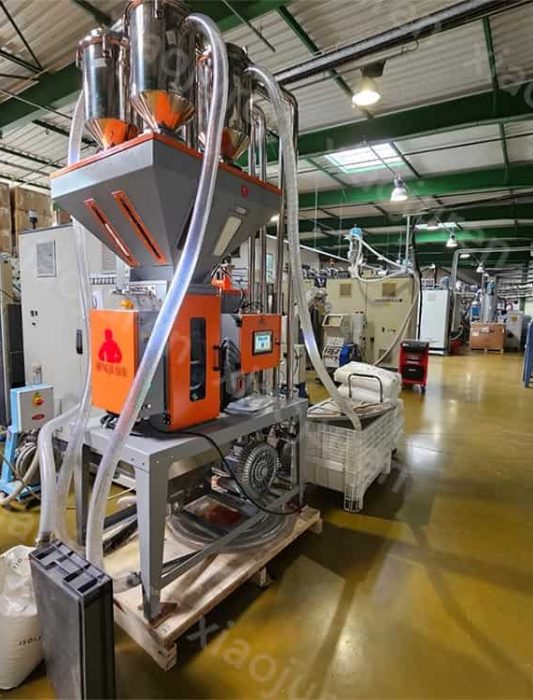

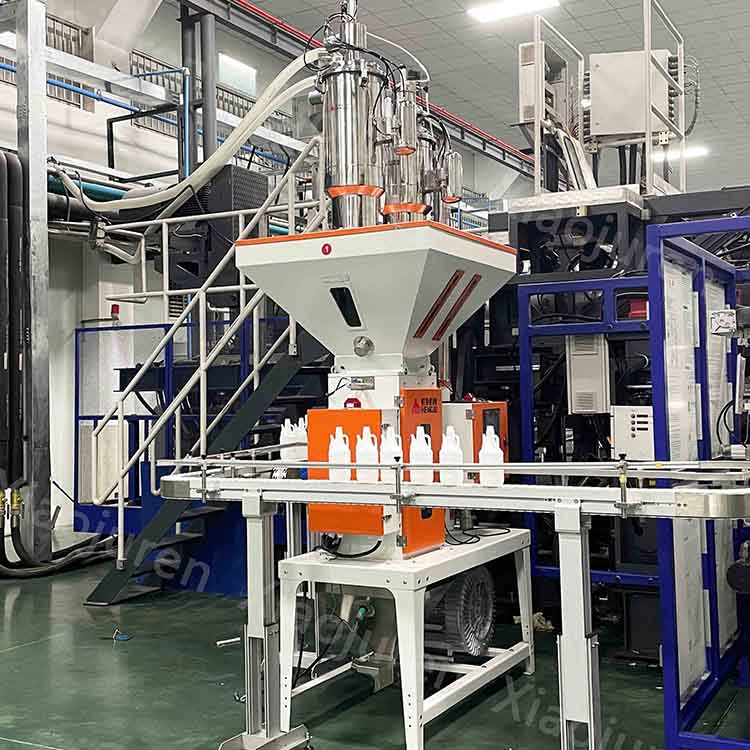

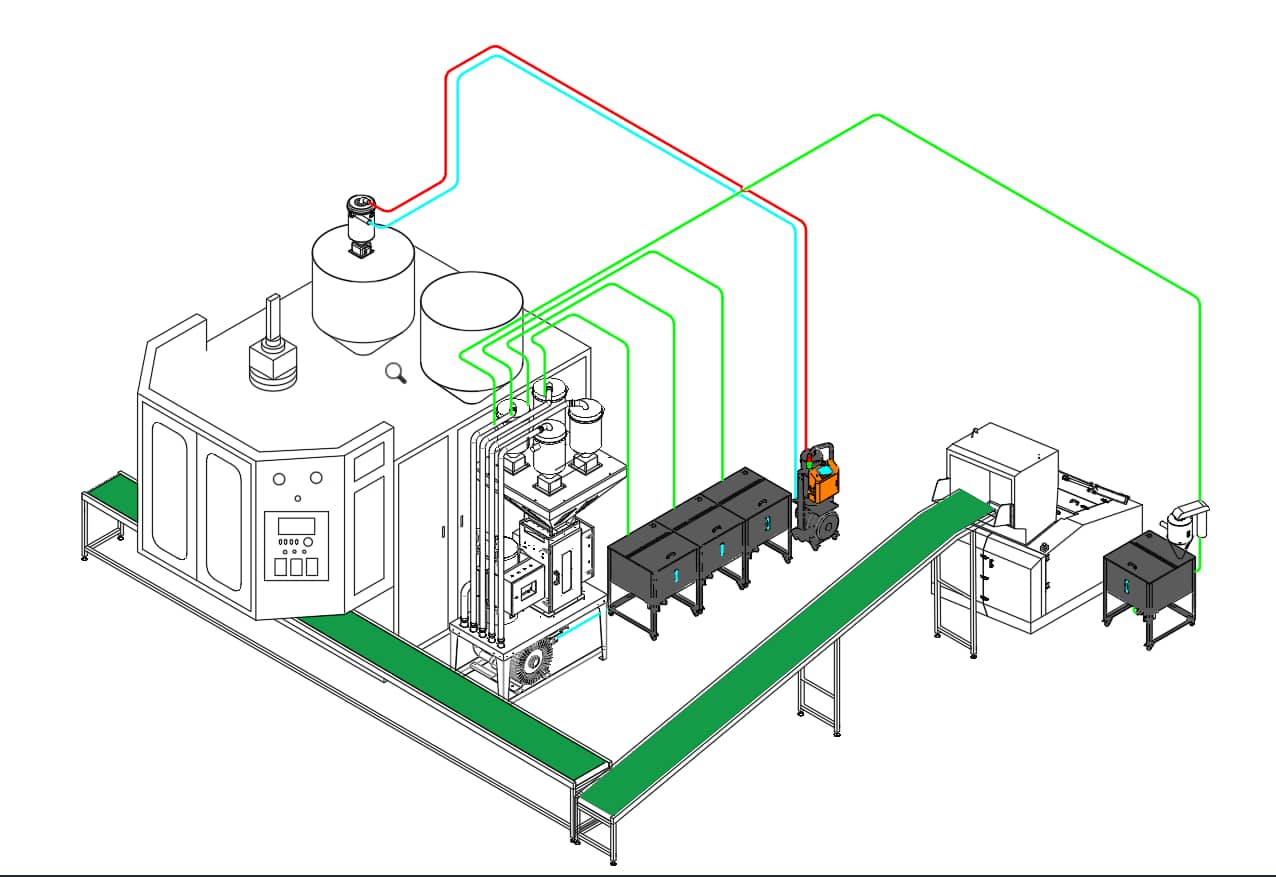

Bottle blowing
project

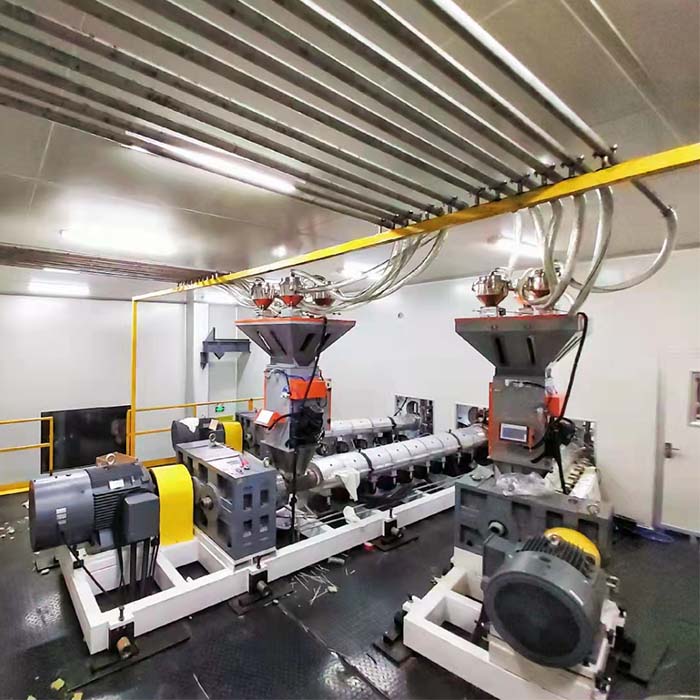

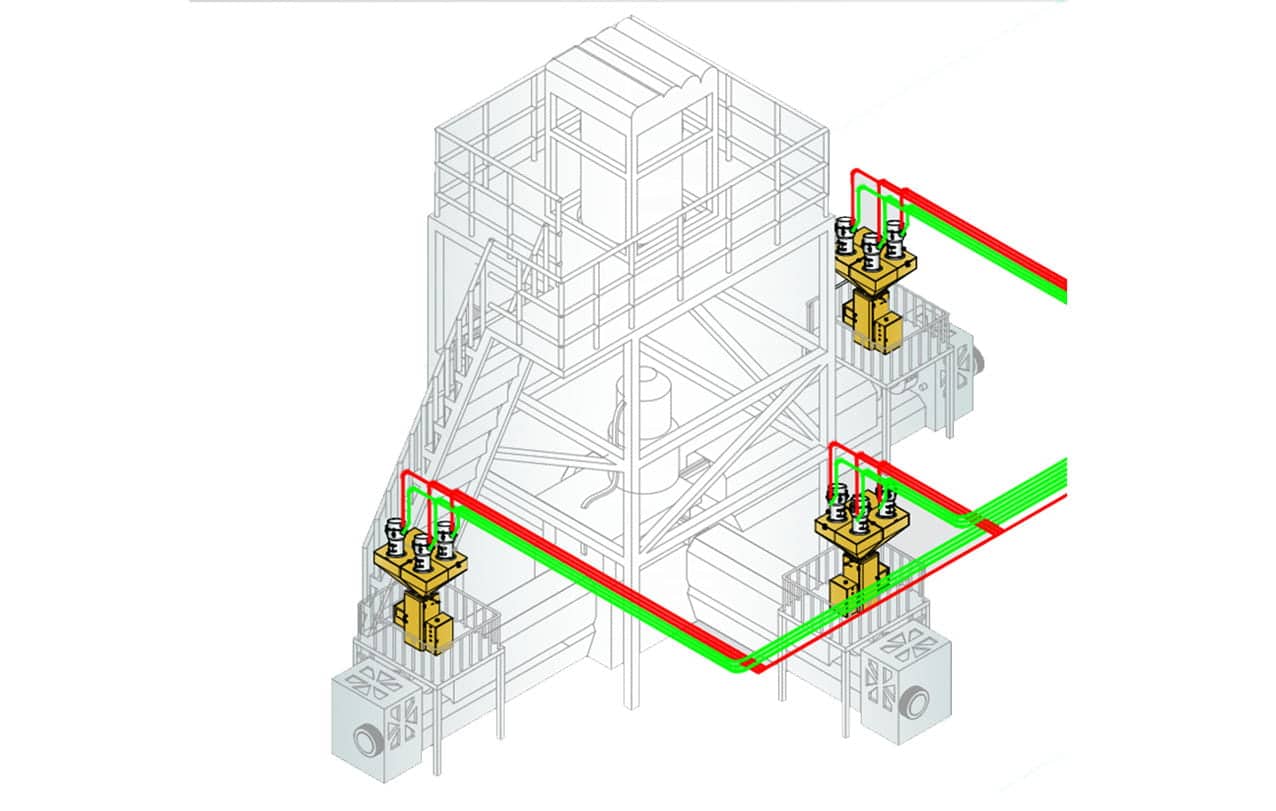

Film blowing
project

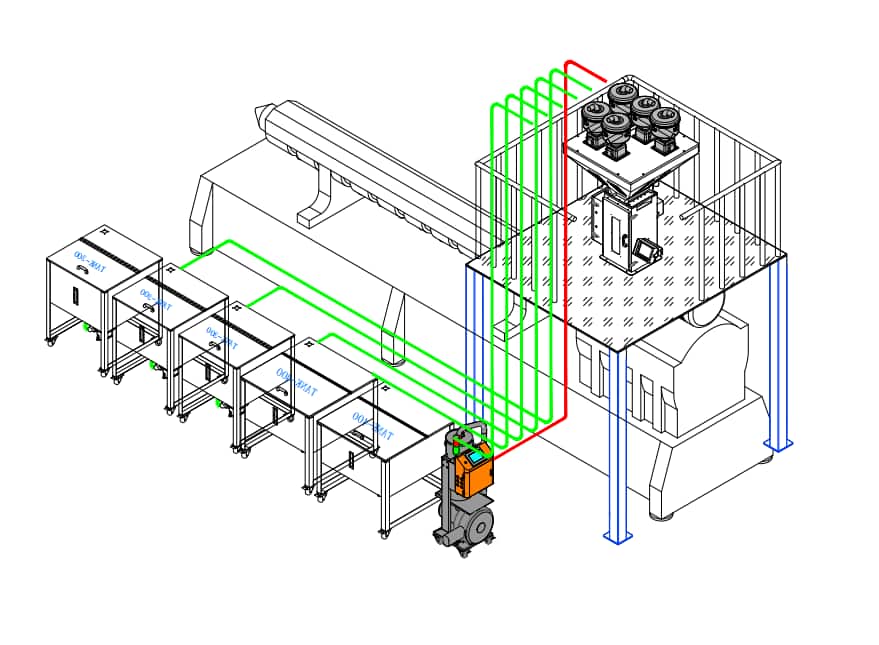

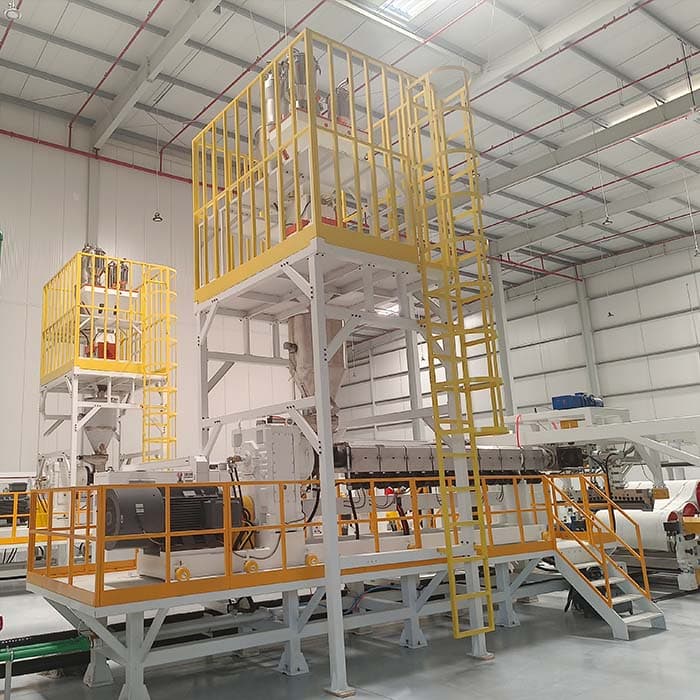

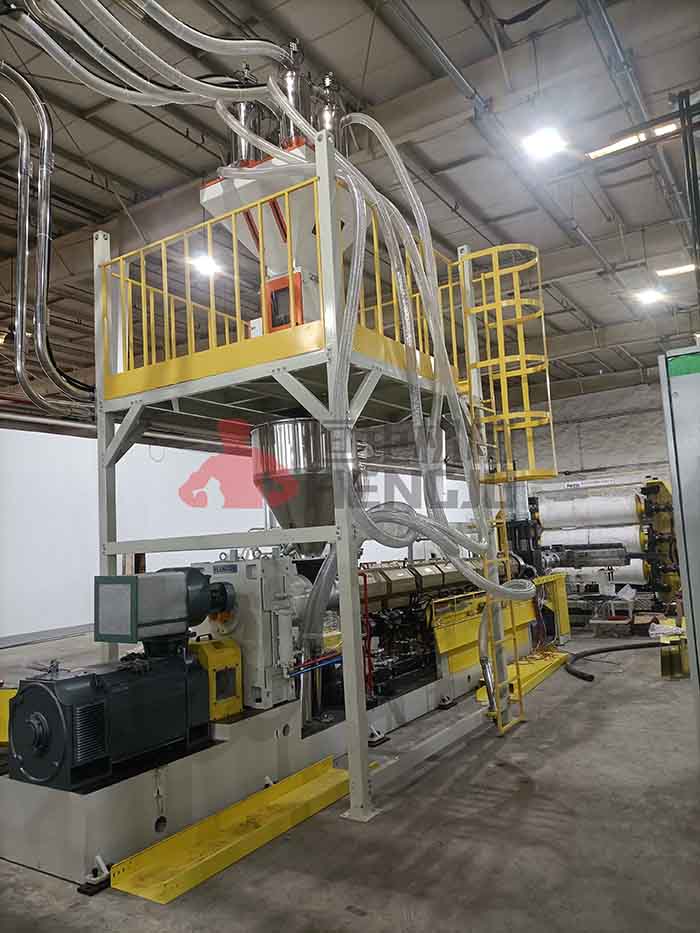

PP/PS/PET Sheet Extrusion
FAQ
Can the gravimetric blender be connected to the ERP system and MES system?
Yes, no problem. It has four protocols: TCP, UDP, ISOon TCP, and Modbus TCP. Please check which protocol your system uses.
Is it possible to automatically skip when one of the components has no materials (such as crushed materials), and continue to mix the remaining formulas and operate normally?
Okay. we can customized program. We can add a low level sensor on the ground material buffer hopper, and when ground material is lower then that sensor, it will give signal to the PLC, and PLC will skip that material. For example, your recipe is virgin 70%+ground 20%+color 2%+additive 8%, when lack of ground material, PLC will skip it, so the blender will work at virgin 70%+color 2%+additive 8%.
Do the valves operate well with ground material? Can the valves be blocked by any type of material?
Most ground materials are fine, no problem, our gravimetric blender can process them normally.
Is calibration easy to perform?
Yes, it’s easy. and we can provide operation video
Can the language of the operating system be customized?
Yes, no problem. Our standard languages

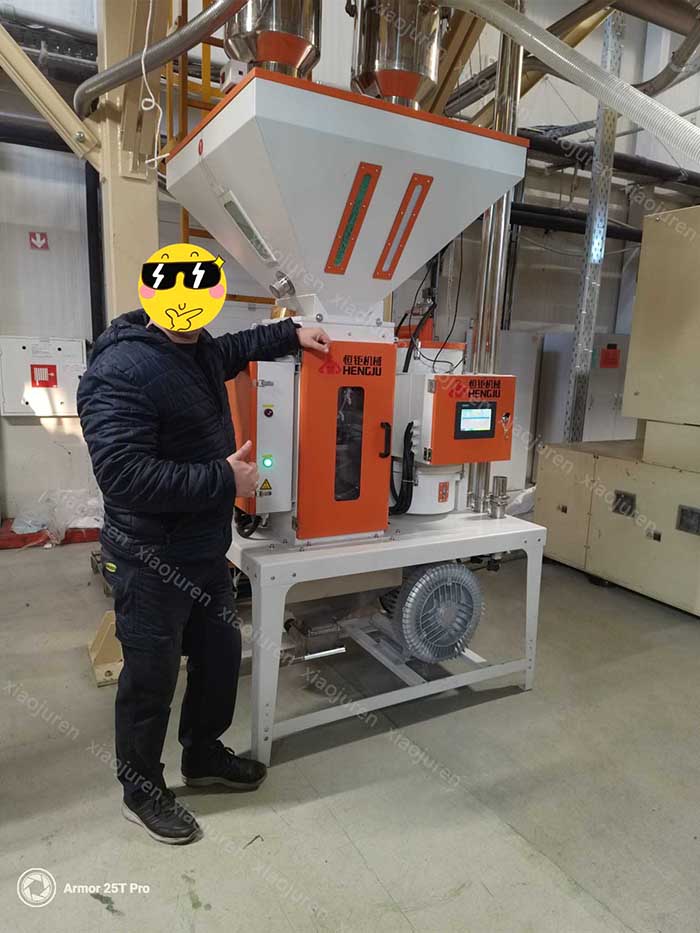

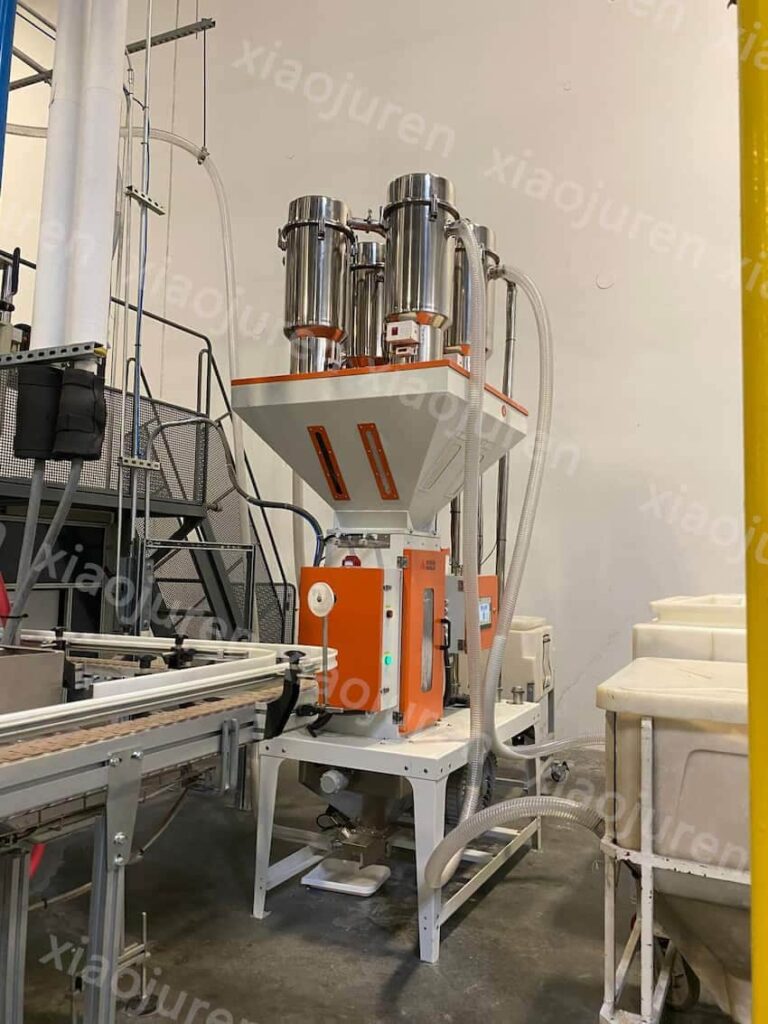

Client Feedback
Our Amazing Clients:

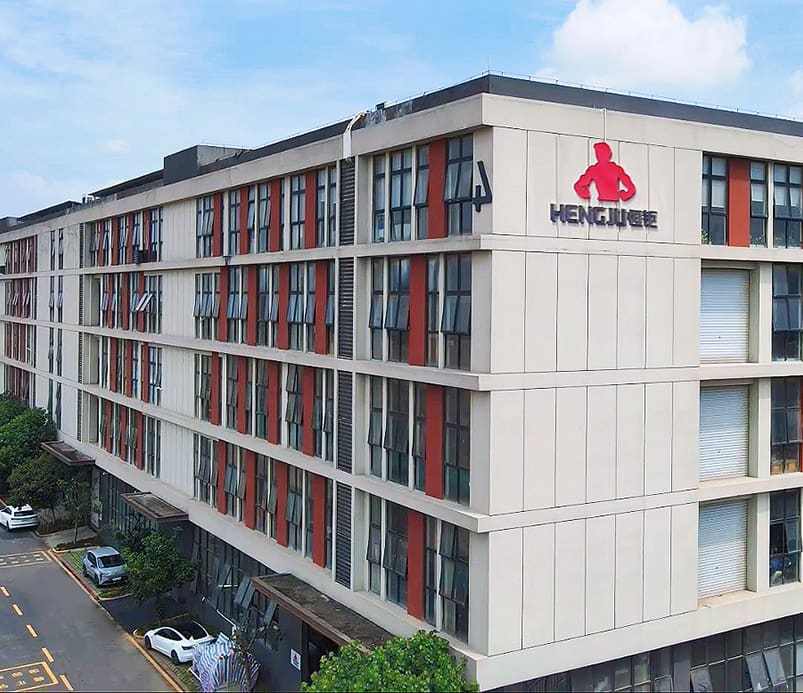

Xiaojuren Machinery
